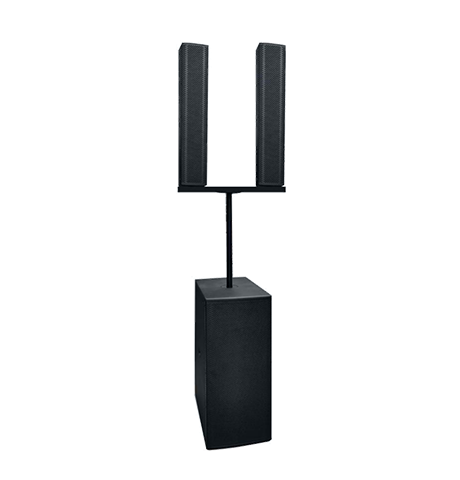

High definition professional sound column

1. Impedance: 4 Ω

2. Frequency response: 90hz-20khz

3. Sensitivity: 102dB / w / M

4. Diffusion angle: 60 ° V × 120°H

5. Composition: 4.5“ × 4 (inlet) + 1 "horn

(25 core neodymium magnetic)

6. Average power: 150W

7. Peak power: 600W

8. Maximum sound pressure level: 127dB

9. Size: 800 mm high × 160 wide × 170 deep

Dual 12 inch active ultra low speaker

1. Frequency range: 25Hz – 200Hz

2. Rated power: 800W (continuous)

3. Impedance: 4 Ω

4. Maximum sound pressure level: 136dB

5. Composition: 12 "x2 long occurrence driver

6. Sensitivity: 108db

Labyrinth strong air flow guiding technology, low loss sound splitter - newly designed subwoofer unit, heat shunting technology, excellent internal air flow.

Active power output:

1. Rated output power: 1200W + 2 × 400W/8Ω，   2000W+2 × 700W/4Ω

2.2-channel 6.3 composite XLR analog signal input, 2-channel link signal output, 2-channel RCA input

3. Input sensitivity: balanced signal 0.77v, unbalanced signal 1.4V

4.2 input and output 48K / 24bit high performance DSP audio processor

5. The panel has LCD display and archive mode call knob, which can call 30 preset archive modes

6. High strength thickened aluminum alloy heat dissipation panel

7. Dimension (H x W x D mm): 360x280x85
