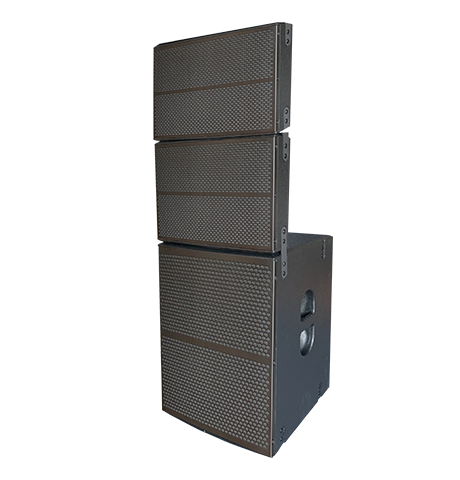

Linear array full frequency speaker

1. Impedance: 4 Ω

2. Frequency response: 120hz-20khz

3. Sensitivity: 102dB / w / M

4. Diffusion angle: 100 ° H × 90°V

5. Composition: 4.5“ × 4 (imported) + 1 "horn (25 core neodymium magnet)

6. Average power: 150W

7. Peak power: 600W

8. Dimension: mm (width 400, depth 110, height 300)

9. Maximum sound pressure level: 127dB

10. Weight: 9kg

11. Gross weight: 10kg

Linear array full frequency speaker

1. Frequency range: 30Hz – 200Hz

2. Rated output power: 2x800w / 8 Ω

3. Rated power: 400W (continuous)

4. Impedance: 8 Ω

5. Maximum sound pressure level: 127dB

6. Signal to noise ratio: > 106 DB

7. Composition: 12 "long occurrence driver

8. Sensitivity: 96dB

9. Net weight: 18kg

10. Gross weight: 20kg 11. Dimension: mm (width 400, depth 435, height 550)

12. Labyrinth strong airflow guidance technology.

13. Low loss divider design.

14. Newly designed subwoofer unit.

Function introduction:

1 channel of 6.3 composite XLR analog signal input,

1 channel link signal output input sensitivity: balance signal 0.77v, Unbalanced signal is 1.4V, 2 in 4 out 48K / 24bit high-performance DSP audio processor USB computer online function, Convenient and fast Protection function: short circuit, overload, over temperature, amplitude limiting, startup delay, high-strength thickened aluminum alloy heat dissipation panel
