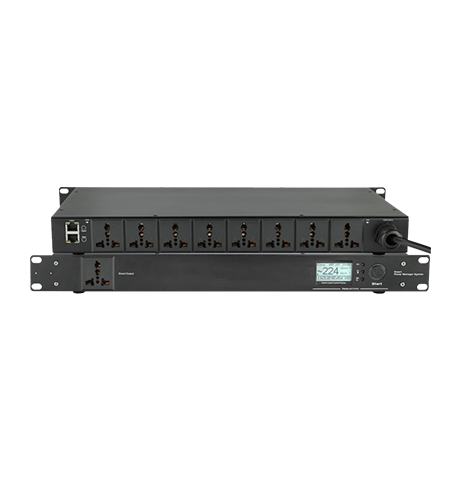

1. Service voltage: AC 220V 50Hz

2. Power output: 8 channels controllable, one channel direct output

3. Action delay: 1s interval

4. Maximum current: 20 a @ 220V 50Hz

5. Display contents: status of each circuit, voltage status and network status.

6. Display mode: 12864 dot matrix display

7. Single circuit current: 13A

8. Communication protocol: UDP

9. Interface mode: RJ45 (built-in network switch)

characteristic

1. Built in 12864 intelligent display window, which can display various parameters in real time.

2.8 switch channel outputs, with an interval of 1s for each channel

3. Ensure personal safety with low-voltage meter.

4. It has locking function to prevent misoperation.

5. Network management function, which can manage any sequencer in the same LAN

6. The built-in network switch can be one in and one out without adding a switch

7. Mobile app and computer operation interface are intuitive and convenient.
