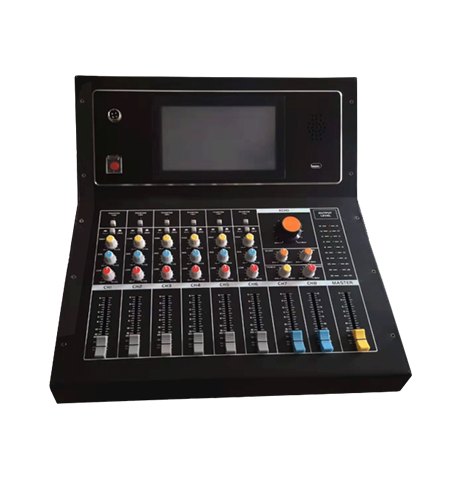

1. One 10 / 100M RJ45 network switch interface is configured as standard to support LAN and WAN

2.8-way IP mixer, unique cabinet mounted design, high-grade metal panel,

3. Beautiful atmosphere, with 7-inch capacitive touch screen control. Humanized operation interface, clear display and sensitive touch. Enter sleep, low power consumption and power saving state when there is no operation

4. Design with embedded computer technology and DSP audio processing technology; High speed industrial chip is adopted, and the start-up time is less than 1s.

5. There are 4 groups of microphone inputs, each with 6.3 interface and Caron interface input. Independent buttons are used to switch the input gain and support DC48V phantom power output. At the same time, each group has three-stage equalization adjustment and pusher adjustment for convenient operation.

6. There are 4 groups of line inputs, of which 2 groups have 6.3 and lotus interface inputs for selection. At the same time, each group has high and low tone adjustment and pusher adjustment.

7. A microphone reverberation adjustment potentiometer is set inside to process people's speech sound fuller and more elastic

8.4 groups of microphones are equipped with priority control button. When the button is activated, the signals of 4 groups of microphones are prior to the input signals of 4 lines.

9. It is equipped with one channel of high-sensitivity microphone input, and the priority with local input can be adjusted freely, which is used to facilitate shouting and intercom.

10. Support call zones and multiple zones, and call whole area broadcasting; Support direct operation call or intercom any terminal

11. Support full duplex two-way intercom function, with network echo cancellation module; Two way intercom is realized between IP terminals, and the network delay is less than 40ms; At the same time, the network echo roar is completely suppressed.

12. The built-in MP3 decoding module can display the song name and support the playback functions of previous song, next song, play, pause, stop, single song cycle, all cycle and so on, which is convenient for operation and control.

13. It supports text broadcasting, which can convert text into voice and broadcast to any region. The speech speed and voice can be customized.

14. Support the help signal ring tone, one click to accept help and intercom functions, and also support hands-free call and receive radio to realize quick link.

15. It is equipped with an emergency warning button. When there is an emergency, press this button to start the broadcast warning in time.

16. Built in 1-channel network hardware audio decoding module supports TCP / IP, UDP and IGMP (multicast) protocols to realize networked transmission of 16 bit CD audio signal.

17. The built-in 5W full frequency high fidelity speaker output realizes two-way call and network monitoring, and is equipped with local audio input signal monitoring control button, which can monitor the local input program source in real time when started.

18. One way alarm triggers short circuit output, cascading external expansion warning equipment or controlling access control; One short-circuit input can be used to trigger preset voice prompt (or alarm), and can also be used to control access control linkage input short-circuit signal.

19. The equipment can support the transport upgrade of LAN and WAN, so as to effectively serve customers.

20. Size: 390 (W) * 420 (d) * 140 (H)
