Server hardware configuration:
1. Screen: 15 inch / 17 Inch Touch Screen (optional)
2. Screen color: tft262144 true color
3. Resolution: 1024 * 768
4. Screen scale 4:3
5. Main board: industrial main board
6. Processor: J1900 (main frequency: 2.0GHz), I3, i5 and i7 are optional
7. Memory: 4G (8g / 16g optional)
8. Hard disk: ssd120g (optional 240g / 500g)
9. Touch: resistance touch
10. Keyboard: Industrial pull keyboard and mouse
11. Interface: 4 * USB, 1 * VGA, 1 * DVI, 2 * gigabit network port, 6 * serial port, PS / 2 * 1, lotus interface (two groups of output and two groups of input), front: 1 * volume knob, 2 * USB, 1 * mic6.35 port
12. Working environment temperature: - 10 ℃ ~ 50 ℃
13. Relative humidity: 10% ~ 95%, non condensing state
14. Chipset: Intel
15. Storage: support 3.5 ", 2.5", msata hard disk; standard configuration: msata 128G
16. Memory: DDR3 1333 / 1600 MHz, maximum support 16GB; standard configuration: 4G / 8g / DDR3 / 1600 MHz
17. Network card: 1 Realtek GBE, 1000M
18. Network protocol: support IPv6 and IPv4 network protocols
19.CPU：Intel Core J1900/i3/ i5
20. Signal to noise ratio of system audio signal: Line: 70dB; MIC: 60dB
21. System audio signal distortion: 1kHz < 0.5%
22. Standard input level of system audio signal: Line: 300mV; MIC: 5mv
23. Standard output level of system audio signal: 0dbv
IP server software functions:
1. Standard Ethernet protocol, supporting TCP / IP, UDP and other standard Ethernet protocols;
2. Network audio transmission, audio decoding and audio playback; Support audio acquisition and sound card acquisition; Support two-way intercom between terminals; Support terminal on demand; Support one click Help; Support prison patrol function and fire alarm linkage;
3. Software operation: Windows XP, wind7 32-bit / 64 bit and windows 10 can run
4. Software installation path: the software is a green version, which can be used by copying without installation. It is recommended that the software be copied in the root directory of disk D;
5. Support LAN, Kua network segment, Internet, cloud server and cloud broadcast network;
6. The maximum number of single server terminals is 10000. The more terminals, the higher the requirements for server hard disk configuration;
7. Support the playback of all bit rate songs in MP3 format;
8. Hundreds of sub control software can be connected for sub control management;
9. The software can access hundreds of mobile app;
10. Support offline download function;
11. Support simulated backup function;
12. Support text to voice function;
13. Support network broadcast notification recording backup function;
14. Support multiple sets of timed task management functions;
15. Support 70 level priority permission management function;
16. Support regional administrative level broadcast authority management;
17. Support the wireless microphone to automatically trigger, start acquisition and broadcast to the terminal;
18. Support the console network microphone to monitor the teacher's lecture in the classroom with wireless microphone;
Product features

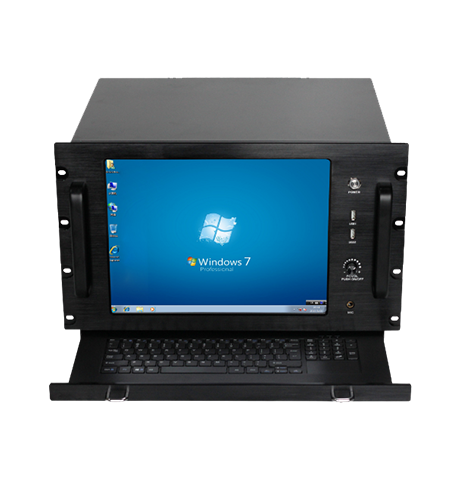

1. Industrial cabinet type chassis design. The chassis adopts steel structure and has high anti magnetism, dust and impact resistance.
2.15/17 inch LED LCD, built-in five wire industrial reinforced touch screen, simple and easy to use touch screen control.
3. The built-in industrial pull-out keyboard, built-in industrial touch mouse panel + left and right buttons are designed to support external mouse and keyboard through USB interface, which is convenient for users to operate.
4. Industrial grade special motherboard design, Intel Core J1900 / I3 / i5 processor (optional), faster processing speed, stronger operation performance, and can work continuously for a long time.
5. The built-in large capacity 128gbmsata solid-state hard disk has the characteristics of anti vibration, anti falling, fast reading and writing speed and low power consumption.
6. It is equipped with 6-way USB interface and 6-way universal serial port (6 groups of industrial asynchronous transmission interfaces), with a maximum transmission rate of 480m. Facilitate the access of peripheral equipment for expansion.
7. It comes with one gigabit network card and is compatible with 100m network. Adaptive switch connection system.
8. Support dual graphics cards and external maximum Fullhd display devices.
9. Support the operating system to configure the functions of automatic power on, automatic power on at fixed time and automatic power off at fixed time, so as to facilitate the flexible operation and management of the project.
10. After carrying the server software, the system management control center is formed. The server software uses the background system service to run. It is an enterprise level standard server working mode. The system can run automatically after startup. Compared with the software running on the front of the interface, it has higher stability and reliability.
