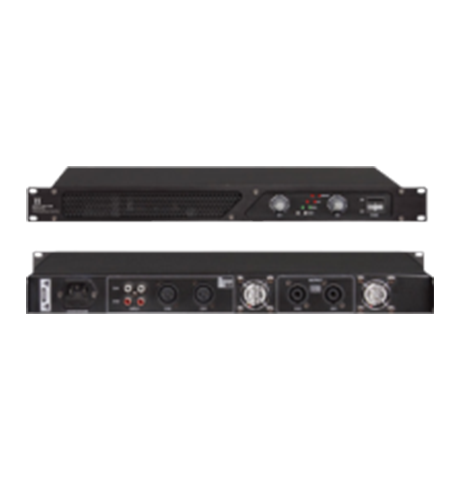

The standard 1U height is suitable for the installation and placement of the cabinet, the panel LED indication is clear, the working state is clear at a glance, and the professional input and output interface makes your use more convenient.

It has perfect protection settings such as short circuit, overheating, DC and overload, which makes the external equipment of the loudspeaker safer. The excellent convective cooling system greatly improves the internal heat dissipation efficiency of the power amplifier, Ensure that the equipment can work stably for a long time.

technical parameter

1.8 ohm Stereo Power: 2X200W

4 ohm Stereo Power: 2x300w

2. Frequency response: 20Hz-20KHz ± 0.5%

3. Conversion rate: 20V/ μ s

4. Total harmonic distortion (20Hz-20KHz): < 0.05%

5. Damping coefficient: > 250

6. Signal to noise ratio: ≥ 95dB

7. Input sensitivity: 1Vrms

8. Input impedance: 20K Ω balanced / 10K Ω unbalanced

9. Circuit form; CLASS AB

10. Voltage: ~ 110V / ~ 220V, 50Hz / 60Hz

11. Product size (wxhxd): 482mm (19 ") x44mm (1.7") x 548mm (21.6 ")

12. Package size (1 set / package): 515mm (20.3 ") x 100mm (4") x315 mm (12.4 ")

13. Net weight of product: 3.6kg (8 lbs)

14. Gross weight of product (1 set / package): 4.3kg (9.5 lbs)
