Equipment Overview:

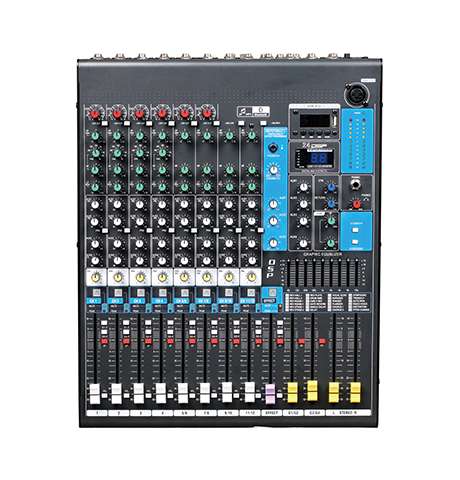

Luxury compact, professional mixer, with ultra-low noise discrete microphone preamplifier and +48v independent phantom power supply for each circuit, suitable for all kinds of performance venues, all kinds of meeting venues, schools, enterprises and individuals.

Product functions:

1. The device supports 8-way MIC input interface and is compatible with 6-way line input interface. The microphone input interface is equipped with 48V independent phantom power supply.

2. The device supports four groups of stereo inputs, two RCA inputs, which can be connected to stereo devices, and one RCA recording output.

3. The device supports two groups of stereo main output, one channel of low-pass filtered XLR output, four channels of grouped output, four channels of auxiliary output, one group of stereo monitoring output, one headphone monitoring output, two effect outputs, and one channel of RCA recording output.

4. The device supports one set of main mix breakpoint insertion and six breakpoint insertion, and can connect additional processors (compressor, equalizer, limiter, etc.).

5. High precision carbon film pusher with 13 100mm strokes.

6. The device has a built-in MP3 player, supports 1-way USB interface, and is connected to an external U disk to play music.

7. The device has a built-in USB sound card, which is connected to the computer for music playback and sound recording.

8. The device is equipped with an LED display screen, which supports the display of MP3 player playing files and status information.

9. Built in 24 byte digital DSP effector and equipped with 24 effect options.

10. The device has an XLR power supply interface, which can be connected to USB lights.

11. The device supports 9-segment graphic equalization and pusher adjustment.

Technical specifications:

1. Frequency response: 20Hz-20KHz (± 2dB)

2. Distortion: <0.03% at+0db, 22hz-22khz A-weighted

3. Sensitivity: +21db~-30db

4. Signal to noise ratio: < -100dbr A-weighted

5. The device has 8 microphone inputs and balanced line inputs, 6-channel single plug mono / stereo automatic switching hybrid interface (stereo input channel: 4 groups (occupying 8-channel mono), 2-channel RCA input, 2-channel RCA output)

6. Output channel: 2 groups of stereo main output, 1 channel of low-pass filtered XLR output, 4 channels of marshalling output, 4 channels of auxiliary output, 1 group of stereo monitoring output, 1 headphone monitoring output, 2 Effect outputs, 1 channel of RCA recording output

7. Insert: 1 group of main mix breakpoints and 6 breakpoints

8. USB interface: connect U disk to play music

9. Effector: 24 bit DSP effector (including voice, small house, hall, echo, echo + echo, plate, vocal board, chorus GTR, rotation GTR, vibrato GTR types), 24 preset effects

10. USB sound card port: support computer recording / playback

11. Phantom power supply: each circuit has an independent +48v switch, which does not interfere with each other

12. Mono Equalization: high frequency: +/-15db @12khz; If: +/-15db @100hz-8khz; Low frequency: +/-15db @80hz

13. Stereo Equalization: high frequency: +/-15db @12khz; If: +/-15db @3khz or +/-15db @500hz; Low frequency: +/-15db @80hz

14. Main mix crosstalk: < -80db @0db 20hz-22khz A-weighted, main output: 0dB, other channels: minimum

15. Input voltage: ac110v~220v (50/60hz)

16. Dimension L × W × H (length, width and height):358 × four hundred and forty × 165（mm）

17. Net weight: 6.22kg
