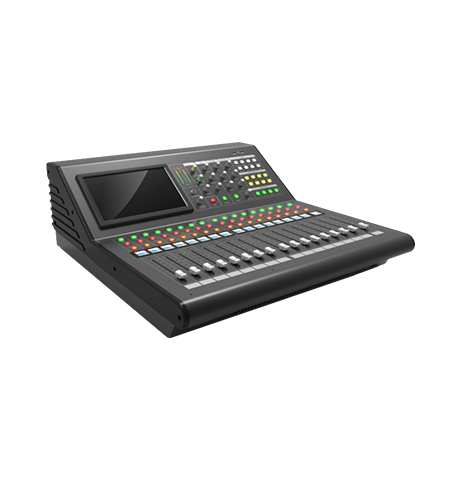

1.10 inch resistive touch screen 1280x800 resolution

2.17 100mm electric pushers

3. The Chinese and English interfaces can be switched at any time without restart

4. Built in USB recording and playback function

5. It can play ape, FLAC, MP3 and wav lossless audio formats

6. The USB player can recognize Chinese song names

7. Built in 16 channel independent feedback Suppressors

8. Built in 16 channel automatic mixing

9. With 8 DCAS

10. IPad touch screen full function control, real-time data synchronization

11. Support simultaneous control of 8 terminals

12. Built in 2 effector modules

13. Arm firmware and DSP firmware can be upgraded through network or USB resistance disk

14. Each input channel has four sections of parameter equalization, noise gate, feedback suppressor, high-low pass, compression and inversion

15. Each output channel has parameter equalization, high-low pass, compression, inversion and 1-second delay

16. Output channel L / R, 10bus, headphone (L / R)

17.10bus mixing bus can select before and after push (pre / post)

18. It supports 100 sets of scene preset functions, and can export and import USB memory for data backup

19.32 PEQ mode storage

20. Built in signal generator: sine wave, pink noise, white noise

21. Channel parameter copy function, the same channel can quickly copy data

22. Wiring mode: balanced input and output XLR

23.8 pusher groups, 8 user-defined keys and 4 fast mute group keys

24. With panel locking key (to prevent misoperation)

25. Channel name can be customized

1. Analog input: 32ch (MIC / line)

2. Analog output: L / R + 10bus + headphone (L / R)

3. ADC: PCM4204 or ak5388

4.DAC：PCM4104

5. Bottom noise: - 92dbu weightless aes17 (20kHz)

6. Thd + n / distortion: 0.005% @4dbu 20 ～ 20KHz

7. Sex noise ratio: 108db without weight

8. Dynamic range: 108db without weighting

9. Maximum input level: balanced 20dbu

10. Maximum output level: balanced 20dbu

11. Frequency response: 20Hz-20KHz ± 0.3dB

12. Display size: 10 inches

13. Resolution: 1280x800

14. Touch resistance

15. Master CPU: Samsung 4418 4-core cortex ™- A9

16. Startup speed: 36 seconds

17. Operating system: Linux

18.DSP：ADSP-21489 400Mhz

19. USB: recording and playback (playback format ape, FLAC, MP3, WAV)

20. DCA: Yes

21. Chinese English interface: Yes

22. Electric pusher: 17

23. IPad control: Yes

24. Effector: 2 effector buses (6 preset effect parameters and 24 user storage)

25. Feedback suppressor: 16 independent

26. Ethernet: Yes

27. RS-232 protocol: Yes

28. USB mouse: support wired USB mouse

29. Power supply: AC 100v-240v; 50/60Hz  155W

30. Dimension (w * D * h): 610x650x230mm

31. Net weight: 22.1kg

32. Package weight and size: 39.5kg (air box package) 800x710x350mm
