Specification parameters
1. Host power supply: ac110v-220v / 50Hz
2. Frequency response: 20Hz-20KHz
3. Signal to noise ratio: ＞ 96dba
4. Total harmonic distortion: ＜ 0.05%
5. Cascade interface: rj45x2
6. Unit interface: rj45x4
7. Central control connection port: 232 serial port x1
8. Computer interface: usbx1
9. External dimension (L) × W × H）：483 × three hundred and twenty-three × 90mm
10. Color: Gray Black
11. Installation method: 19 inch standard cabinet

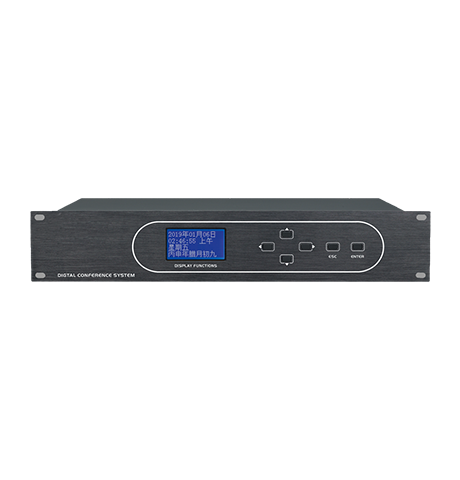

Product description
1. The system realizes the expansion of more conference functions such as conference basic discussion
2. Fully combine advanced digital technology, network technology and audio technology.
3. Cat6e is uniformly used between the host and the microphone, and between the microphone and the microphone to realize the high-speed transmission of data under the condition of high bandwidth, so as to further improve the reduction of the microphone and the transmission speed of sound, reduce the sound loss, and ensure the high fidelity audio of the microphone sound color
4. At the same time, the shielding system and equalizer module are used together with digital frequency shift technology and suppression technology to control whistling, immune to high-frequency noise, environmental noise and electromagnetic interference, so as to present perfect sound quality to users.
5. It can be seamlessly connected with intelligent central control system and video conference system to provide a complete solution for efficient modern conference system engineering.
Functional features
1. The original DCP / move digital processing and transmission technology is adopted, which complies with iec60194 international standard
2. 32bit high-speed floating-point DSP is used for processing, with a bandwidth of 20Hz ~ 20kHz and perfect and clear sound quality
3. Anti interference circuit design to eliminate the interference of all mobile phone signals
4. It has its own 3.8-inch LCD screen and independent key operation
5. Four RJ45 microphone connection ports. Each channel supports 30 units and can connect 120 units
6. Two RJ45 system expansion ports, which can increase the capacity of 5000 units
7. Multi channel audio input and output interface, which can be connected to sound reinforcement or recording equipment
8. Meeting mode: first in first out mode, last in first out mode, fully open mode and chairman mode
9. It has the functions of speaking quantity, automatic closing, time limited closing, voice controlled speaking, etc
10. The system can be centrally controlled and managed through the central control system
